Motherboard GA-H81M-D3H

Padrão MICRO ATX

Esta placa fornece uma esclusiva tecnologia que protege componentes cruciais do seu PC, além de proteger contra falhas de energia. Ela possui sistema de controle de temperatura e ainda suporta processadores Intel i3, i5 e i7.

Informações do produto

Modelo	GA-H81M-D3H
Padrão	MICRO ATX
Processador	Support for Intel® Core™ i7/i5/i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
ChipSet	Intel H81
Memória	4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules - If four single-sided DDR3 1600 MHz memory modules are installed, the maximum memory speed will be limited to 1066 MHz.
Áudio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Gráficos	1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x DVI-D port, supporting a maximum resolution of 1920x1200 The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160. Support for HDMI 1.4a version. Maximum shared memory of 1 GB.
Slots de expansão	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express slots conform to PCI Express 2.0 standard.) 2 x PCI slots
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Conectores Internos I/O	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper

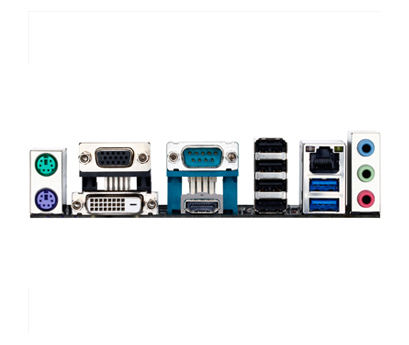

Conectores Painel Traseiro	chipset: 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x serial port 1 x HDMI port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
BIOS	2 x 32 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control - Whether the fan speed control function is supported will depend on the cooler you install.
Características únicas	Support for Q-Flash Support for Xpress Install Support for APP Center @BIOS/EasyTune/EZ Setup/USB Blocker/Smart TimeLock/Smart Recovery 2. Support for ON/OFF Charge.
Sistema Operacional	Support for Windows 8.1/8/7
Tamanho	24.4cm x 22.5cm
