| Modelo |
GA-H170N-WIFI |
| Padrão |
Mini ITX |
| Processador |
Intel® H170 Express Chipset
|
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
|
| Memória |
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual arquitetura de memória de canal
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
|
| Áudio |
Realtek® ALC1150 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
|
| Suporte para LAN |
2 x Intel® GbE LAN chips (10/100/1000 Mbit)
|
| Wireless Communication module |
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate * Actual data rate may vary depending on environment and equipment.
|
| Expansion Slots |
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
|
| Storage Interface |
Chipset:
1 x M.2 Socket 3 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2 x SATA Express connectors
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 1 * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
|
| USB |
Chipset:
2 x USB 2.0/1.1 ports available through the internal USB header
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header) 1 x USB Type-C™ port on the back panel, with USB 3.0 support
|
| I Interno / O Conectores |
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x SATA Express connectors
1 x conector USB 3.0 (compatível com USB 3.0 adicional de 2 portas)
1 x M.2 Socket 3 connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
|

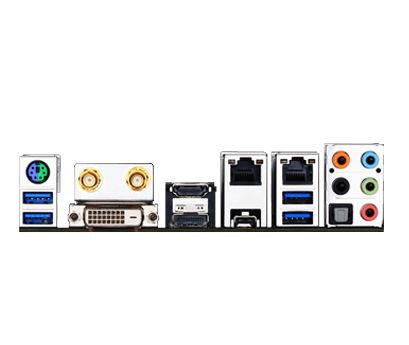

| Back Panel Connectors |
1 x PS/2 keyboard/mouse port
2 x HDMI ports
2 x SMA antenna connectors (2T2R)
1 x DVI-D port
4 x USB 3.0/2.0 ports x
1 x USB Type-C™ port, with USB 3.0 support
2 x RJ-45 ports
1 x optical S/PDIF Out connector
1 x DisplayPort, suportando uma resolução máxima de 4096X2304 @ 24Hz / 2560X1600 @ 60Hz / 3840x2160 @ 60Hz / 1920X1200 @ 60Hz
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
| Dimensões (CxL) |
Mini ITX form factor 17x17cm
|
| I/O Controller |
iTE® I/O Controller Chip
|
| H/W Monitoring |
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warningCPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
|
| Form Factor |
Mini-ITX Form Factor; 17.0cm x 17.0cm
|
| Box Contents |
GA-H170N-WIFI motherboard
Motherboard driver disk
Two SATA cables
User's Manual
Quick Installation Guide
One antenna
I/O Shield
Wireless module driver disk
|
| Remark |
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website .
|
| Bundle Software |
Norton Internet Security (OEM version)
Intel® Smart Response Technology
Intel® Wireless Display
cFosSpeed
|
| Operating System |
Support for Windows 10/8.1 64-bit
Support for Windows 7 32-bit/64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
|
