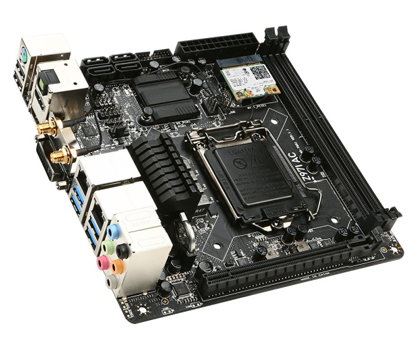

Motherboard Z97I AC

Padrão Mini ITX

Esta placa permite uma grande capacidade de opcionais como wi-fi e bluetooth, mantem qualidade, estabilidade e facil ajuste de sistema, se adequa as tecnologias intel e possui o "Fast Boot" que é o boot-up de poucos segundos.

Informações do produto

Modelo	Z97I AC
Padrão	Mini ITX
Processador	Intel Z97 Express Chipset
Chipset	Intel Chipset NM70 expresso
Memória	DDR3 1066/1333/1600/1866 / 2000 / 2133 / 2200 / 2400 / 2600 / 2666 / 2800 / 3000 (*OC) MHz. 16 Gb Max Dual-Chanel mode Supports Intel® Extreme Memory Profile (XMP) Suporta non-ECC, un-buffered memory
On-Board SATA	SATAIII controller integrated in Intel® Z97 chipset Up to 6Gb/s transfer speed. Supports Intel Smart Response Technology* (optional) Supports Intel Rapid Start Technology and Intel Smart Connect Technology* Supports Intel Core processors on Windows 7 and Windows 8 •SATA1~4 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® Z97
Áudio	Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Conectores	1x 24-pin ATX Power Supply connector 1x 4 pino conector CPU FAN 1x 4 pino conector SYS FAN 1x Botão Clear CMOS 1x Painel frontal áudio header 1x Onboard Buzzer 1x USB 2.0 header 1x S/PDIF out header 2x SATA III conector (s) de 6 Gb / s 1x CLR_CMOS header 1x conector de porta paralela (LPT) 1x Chassis intrusion header 1x VGA header (opcinal)
Suporte para LAN	2 x Realtek® 8111G Gigabit LAN controller
Capacidades para expansão	1 x PCIe 3.0 x16 slot 1 x Half-size mini-PCIe slot* Intel Dual Band Wireless-AC 7260 Wi-Fi/Bluetooth card pre-installed.
USB	6 x USB 3.0 ports (4 ports on the back panel, 2 ports available through the internal USB connectors) 4 x USB 2.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
Wireless LAN (Opcional)	Wi-Fi/Bluetooth mini-PCIe card with Intel® Dual Band Wireless-AC 7260 chip. Supports Wi-Fi 802.11 ac/a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed. Supports Intel® Wireless Display (WiDi)
Bluetooth (Opcional)	Wi-Fi/Bluetooth mini-PCIe card with Intel® Dual Band Wireless-A 7260 chi Supports Bluetooth v4.0 (includes BLE* and Bluetooth 3.0+HS) BLE: Bluetooth Low Energy
Concectores Internos	1 x 24-Pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 4-pin CPU fan connectors 1 x 4-pin system fan connectors 1 x Clear CMOS jumper 4 x Serial ATAIII connectors 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports) 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports) 1 x Serial port connector 2 x System panel connectors 1 x Front Panel Audio connector 1 x Chassis Intrusion connector

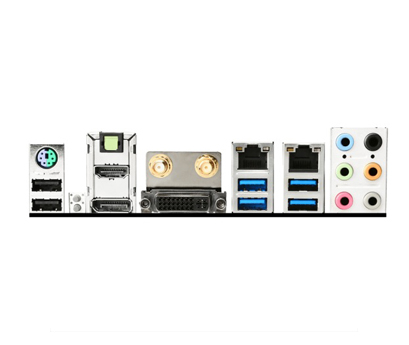

Conectores Externos	1 x PS/2 keyboard/ mouse combo port 1 x Clear CMOS button 1 x GO2BIOS button 2 x USB 2.0 ports 4 x USB 3.0 ports 1 x Optical S/PDIF-out connector 2 x RJ45 LAN Jack 1 x 6 in 1 audio jack 1 x DisplayPort with max. resolution of 4096x2160@24Hz, 24bpp/ 3840x2160@60Hz, 24bpp 1 x HDMI® port with max. resolution up to 4096x2160@24Hz, 24bpp/2560x1600@60Hz, 24bpp/1920x1080@60Hz, 36bpp 1 x DVI-I port with max. resolution up to 1920x1200 @60Hz, 24bpp
Dimensões	6.7 in. x 6.7 in. (17 cm x 17 cm) Mini-ITX Form Factor
